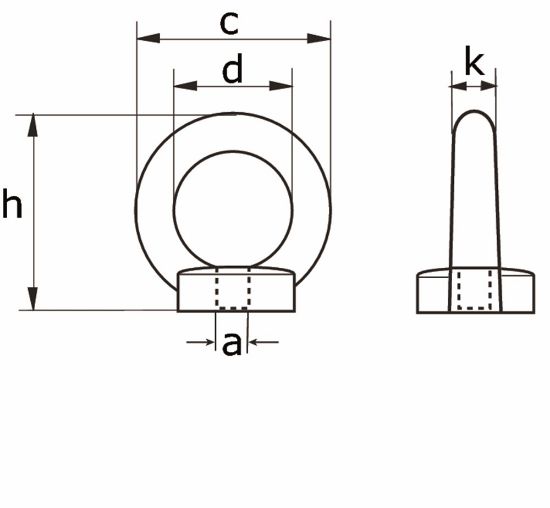

DX Ringmoer type 582 VZ

Ringmoer

loading-variant-products

Productnummer	EAN	Fabrikant artikelnummer	Hoogte	Norm	Draad	hoogte (moer)	Diameter oog	Diameter oog inwendig	Dikte oog	Werklast
5000052168	8716336448059,8716336549619,8716336111755	8000.005.8208	36	DIN582	M8	36	36	20	8	140
5000052167	8716336447854,8716336549602	8000.005.8206	36	DIN582	M6	36	36	20	8	70
5000052166	8713138645853,8713138665851	9.683582042	147	DIN582	M42	147	144	80	32	6300
5000052165	8713138645808,8713138665806	9.683582036	128	DIN582	M36	128	126	70	28	5100
5000052164	8713138645754,8713138665752	9.683582030	109	DIN582	M30	109	108	60	24	3200
5000052163	8713138645778,8713138665776	9.683582027	90	DIN582	M27	90	90	50	20	2500
5000052162	8716336449551,8716336549671,8716336114558	8000.005.8224	90	DIN582	M24	90	90	50	20	1800
5000052161	8716336560614,8716336560621	8000.005.8222	80,5	DIN582	M22	80,5	81	45	18	1500
5000052160	8716336449353,8716336549664,8716336114053	8000.005.8220	71	DIN582	M20	71	72	40	16	1200
5000052159	8716336559410,8716336559427,8716336113858	8000.005.8218	71	DIN582	M18	71	72	40	16	900
5000052158	8716336448950,8716336549657,8716336113254	8000.005.8216	62	DIN582	M16	62	63	35	14	700
5000052157	8716336448752,8716336549640,8716336112950	8000.005.8214	62	DIN582	M14	62	63	35	14	490
5000052156	8716336448554,8716336549633,8716336112554	8000.005.8212	53	DIN582	M12	53	54	30	12	340
5000052155	8716336448356,8716336549626,8716336112158	8000.005.8210	45	DIN582	M10	45	45	25	10	230
